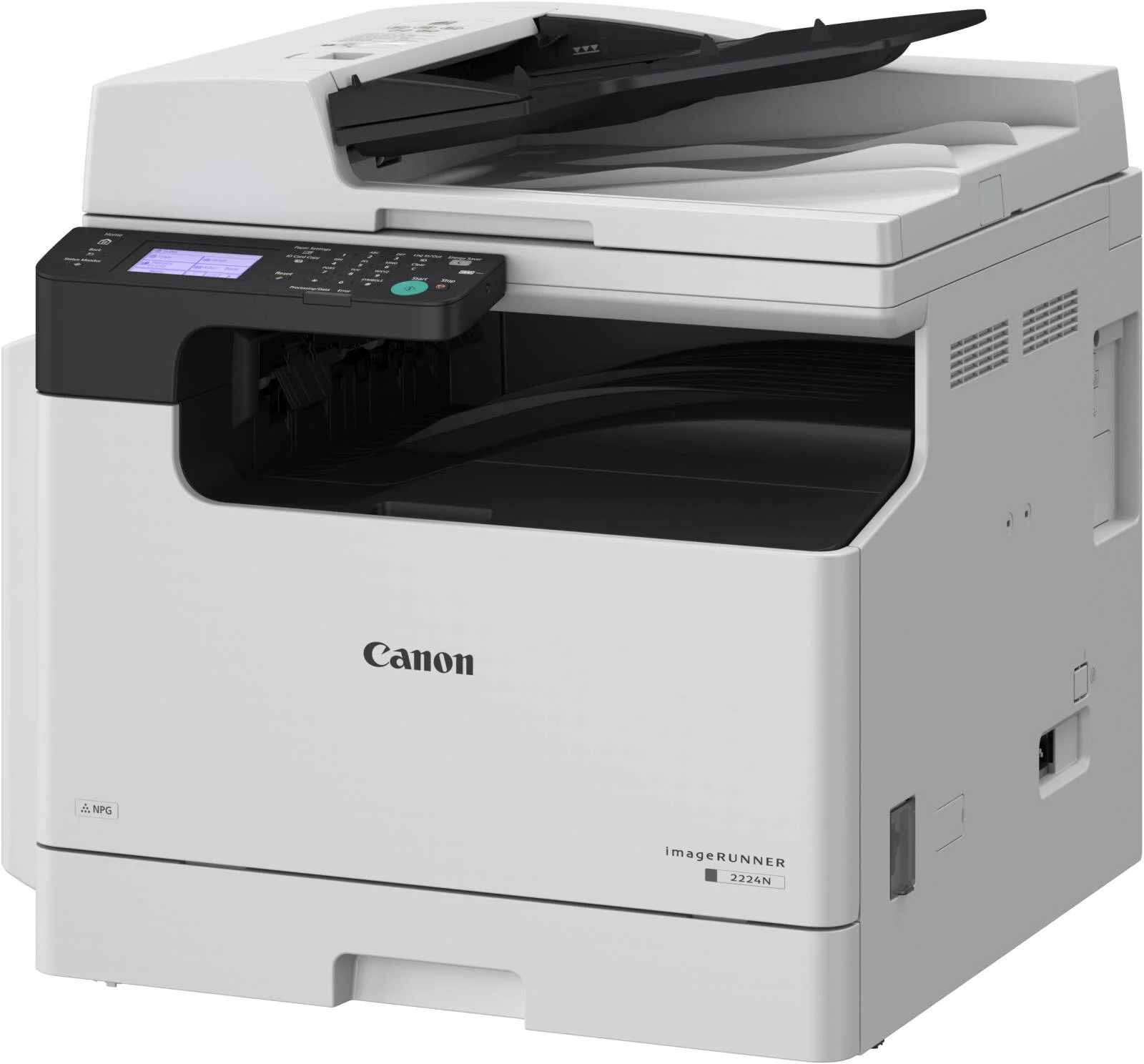

imageRUNNER 2224N Driving workplace productivity Designed to meet the needs of small and medium enterprises (SMEs), the iR2224N/2224 is packed with essential functionalities. With print speed up to 24 ppm, enjoy great productivity with robust information security. Key Features A3 Monochrome Print speed of up to 24 pages per minute Specifications Main Unit Machine Type A3 Monochrome Laser Multifunctional Core Functions Print, Copy, Scan, and optional Send Processor Speed 1.6GHz Dual-Core Processor Control Panel 8.9 cm/3.5 inch Monochrome Touch Panel Memory Standard: 1.0GB RAM Storage Standard: 2GB eMMC Interface Connection NETWORK Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Device) x1 Paper Supply Capacity (A4, 80 gsm) Standard: 350 sheets Maximum: 600 sheets (with Cassette Feeding Module-AK1) Paper Output Capacity (A4, 80 gsm) Standard: 250 sheets Maximum: 250 sheets Finishing Capabilities Collate, Group Supported Media Types Multi-purpose Tray: Thin, Plain, Recycled, Thick, Color, Bond, Transparency, Label, Pre-punched, Envelope Paper Cassette: Plain, Recycled, Color, Pre-punched Supported Media Sizes Multi-purpose Tray: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelope (COM10, Monarch, DL, ISO-C5) Custom size Min. 95.0 x 148.0mm up to 297.0 x 431.8mm Paper Cassette: Standard size: A3, A4, A4R, A5R, B4, B5, B5R Supported Media Weights Multi-purpose Tray: 60 to 157 gsm Paper Cassettes: 64 to 90 gsm Duplex: 60 to 90 gsm Warm-up Time From Power On: 13 Seconds or Less* Quick start mode: N/A From Sleep Mode: 4.3 Seconds or Less Dimensions (W x D x H) 627 x 589 x 502 mm (with Platen cover) 627 x 589 x 594 mm (with Platen cover and cassette) 627 x 607 x 698 mm (with DADF and cassette) Installation Space (W x D) 1065 x 1285 mm Weight Standard: Approx. 31.6 kg without toner Print Specifications Printing Method 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) 2-sided*: Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R) *With optional Duplex Unit-E1 Print Resolution (dpi) Up to 1,200 x 1,200 Page Description Languages Standard: UFRII, PCL6/PCL5 Double-Sided Printing Optional Mobile / Cloud Printing AirPrint, Mopria, Canon PRINT Business and Universal Print by Microsoft A range of software solutions is available to provide printing from mobile devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. Fonts PCL fonts: 45 Roman, 10 Bitmap fonts Print Features Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Print Date Operating Systems UFRII: Windows®8.1 / Windows®10 / Windows®11 / Windows®Server2012 / Windows®Server2012 R2 / Windows®Server2016 / Windows®Server2019 / Windows®Server2022 PCL: Windows®8.1 / Windows®10 / Windows®11 / Windows®Server2012 / Windows®Server2012 R2 / Windows®Server2016 / Windows®Server2019 / Windows®Server2022 PPD: Windows®8.1/Windows®10/Windows®11 As of Nov 2022 Copy Specifications Copy Speed 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) 2-sided*: Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R) *with optional DADF First-Copy-Out Time Platen: Approx. 7.4 seconds or less Copy Resolution (dpi) 600x600 Multiple Copies up to 999 copies Copy Density Automatic or Manual (9 Levels) Magnification 25% - 400% (1% Increments) Preset Reductions 25%, 50%, 70%, 100%, 141%, 200%, 400% Preset Enlargements 25%, 50%, 70%, 100%, 141%, 200%, 400% Basic Copy Features Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample Scan Specifications Type Standard Platen Cover and optional Duplexing Automatic Document Feeder [2-sided to 2-sided] Pull Scan Specifications ScanGear MF. For both TWAIN and WIA Windows®8.1/ Windows®10/Windows®11 macOS (10.12 or later) * As of Nov 2022 Scan Resolution (dpi) Scan for Copy: up to 600 x 600 Scan for Send: (Push) up to 300 x 600, (Pull) up to 600 x 600 Scan for Fax: up to 200 x 400 Document Feeder Paper Capacity (80 gsm) 50 Sheets (80gsm) Acceptable Originals/Weights Platen: Sheet, Book Document Feeder sheet media weight: 1-sided/2-sided continuous scanning: 52 to 105 gsm (BW/CL) Only 1-sheet feeding is supported in 37-52 and 105-128 gsm. Supported Media Sizes Platen max. scanning size: 297.0 x 432.0 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 128.0 x 148.0 mm to 297.0 x 432.0 mm Scan Method Push Scan, Pull Scan, Scan to Network Scan Speed With optional DADF: 1-sided Scanning: 35/25 (300 dpi, send), 25 (600 dpi, copy) 2-sided Scanning: 12/8 (300 dpi, send), 8 (600 dpi, copy) Double-Sided Scanning Yes with optional DADF Send Specifications Optional / Standard Optional Destination Standard: E-mail (SMTP), SMB3.0 Address Book / Speed Dials LDAP (50)/Local (300)/Speed dial (296) Send Resolution (dpi) Push: 300 x 600 (SMB/FTP/Email) Pull: 50 x 50, 75 x 75, 150 x 150, 200 x 200, 300 x 300, 400 x 400*, 600 x 600* *colour mode is black and white only Communication Protocol File: SMB3.0 (TCP/IP) Email: SMTP (send) File Format Standard:TIFF, JPEG*, PDF, PDF (Compact) *Single Page Only Universal Send Features Original Type Selection, Two-sided Original, Different-size Originals, Density Adjustment, Sharpness, Preview, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report Store Specifications Memory Media Standard: USB Memory Security Specifications Authentication & Access Control Department ID Authentication (Department ID and PIN Login, Function Level Login) Network Security TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP Address Filtering), Enabling/Disabling (Network Applications, Remote UI, USB Interface), USB Port separation from LAN Document Security Print Security (Secure Print), Send Data Security* (Restricted E-mail/File send functions, Allow/Restrict Sending from History) *With optional Color Send Kit-AC1@E Device Security Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193) Device Management & Auditing Administrator Password, Digital Certificate and Key Management, Security Policy Setting Environmental Specifications Operating Environment Temperature: 10 to 30 °C (50 to 86 °F) Humidity: 20 to 80 % RH (Relative Humidity) Power Source 220-240V 50/60Hz (2.8) Power Consumption Maximum: Approx. 1,500 W Standby: Approx. 15.5 Sleep mode: Approx. 0.9 W Typical Electricity Consumption (TEC): 0.28kWh * As per US Energy Star 3.0 Noise Levels Sound Power Level (LWA,m) Active (1-sided): 6.7B*, Kv: 0.3B* Sound Pressure Level (LpAm) Bystander's position: Active (1-sided): 55 dB* * Reference value: measured only one unit with ISO7779, described with ISO9296:2017 Software & Printer Management Remote Management Tools iWEMC eMaintenance Scanning Software ScanGear Optimisation Tools Canon Driver Configuration Tool Consumables Toner Cartridge/s Toner C-EXV 42 Black Toner Estimated Yield 10,200 pages (A4) (Estimated @ 5% coverage) Paper Supply Options Cassette Feeding Unit Name: Cassette Feeding Module-AK1 Paper Capacity: 250 sheets x 1 (80 gsm) Paper Type: Plain, Recycled, Colour, Pre-punched Paper Size: A3, A4, A4R, A5, B4, B5, B5R Paper Weight: 64 to 90 gsm Power Source: Main Unit Dimensions (W x D x H): 581 x 575 x 92 mm Weight: Approx. 5.8 kg Paper Feeder Name: DADF-AY2 Duplexing Automatic Document Feeder [2-sided to 2-sided] Hardware Accessories Others Name: Plain Pedestal Type-J2 Optional pedestal to raise the device when free-standing System & Controller Options Send Options CLR SEND KIT-AC1 Other Options Others Instant Stapler-B1
