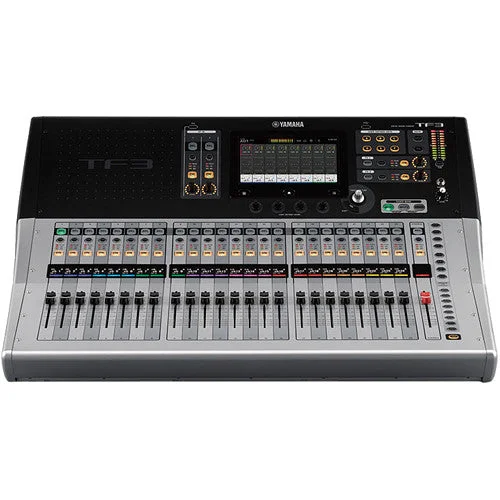

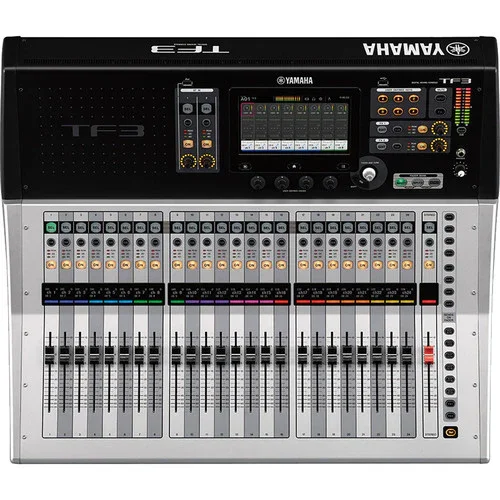

میکسر دیجیتال یاماها مدل TF3

Key Features Touchscreen & 25 Motorized Faders 24 Analog XLR/TRS Combo Mic/Line Inputs 2 Analog RCA Pin Stereo Line Inputs 16 Analog XLR Outputs Per-Channel EQ /Comp & 8 FX Processors Recallable D-PRE Microphone Preamps Expandable Up to 48 Input Channels 34x34 Recording to Computer via USB 2.0 Optional Tio1608-D I/O Rack Includes Steinberg's Nuendo Live Overview The Yamaha TF3 is a rack-mountable digital audio mixing console that features a touchscreen display, 25 motorized faders, and is expandable up to 48 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF3 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device. The TF3 console itself provides 24 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression. The TF3 ships with Steinberg's Nuendo Live for advanced multi-tracking and virtual sound check capabilities. Key Specs Max I/O Capacity 48x Input / 22x Output Number of Analog Input Channels 24 (24 Mono / 2 Stereo) Number of Mic Preamps 24 Number of Analog Output Channels 16 Faders & Level Adjustment 25x 3.9" / 100 mm Motorized Fader Built-In Effects 8x Effect (Type Unspecified) Analog Inputs 1x 1/4" TS Footswitch Input 24x Combo XLR-1/4" TRS Balanced Mic/Line Input 2x Stereo RCA Unbalanced Input Analog Outputs 16x XLR Balanced Output 1x 1/4" TRS Unbalanced Headphone Output Digital I/O 1x RJ45 (Network) USB I/O 1x USB-B (Host Connection) 2x USB-A (Control, External Memory) Rack Mountable No Mixer Max I/O Capacity 48x Input / 22x Output Number of Analog Input Channels 24 (24 Mono / 2 Stereo) Number of Mic Preamps 24 Number of Analog Output Channels 16 Mix Routing 1x Main LRC 1x Subgroup 6x Stereo Aux Send 8x Mono Aux Send Groups 8x DCA Group Presets Yes Display Touchscreen Faders & Level Adjustment 25x 3.9" / 100 mm Motorized Fader Signal Processing Gain/Trim Range -6 dB to +66 dB EQ No Graphic EQ Yes Built-In Effects 8x Effect (Type Unspecified) Audio Delay Yes Digital Audio Sample Rates 48 kHz Bit Depth Record: 24-Bit Performance Frequency Response 20 Hz to 20 kHz +0.5/-1.5 dB Max Input Level Mic/Line Input: +30 dBu Stereo Input: +10 dBV Analog Dynamic Range 107 dB at Min Gain Headphone Output Power 3 mW 75 mW (Max) I/O Impedance Combo XLR-1/4" Input: 7.5 Kilohms Stereo RCA Input: 10 Kilohms XLR Output: 75 Ohms Headphone Output: 100 Ohms Noise Floor -85 dBu A-Weighted THD < 0.05% at Min Gain (+4 dBu) Signal Generator Yes Connectivity Analog Inputs 1x 1/4" TS Footswitch Input 24x Combo XLR-1/4" TRS Balanced Mic/Line Input 2x Stereo RCA Unbalanced Input Analog Outputs 16x XLR Balanced Output 1x 1/4" TRS Unbalanced Headphone Output Digital I/O 1x RJ45 (Network) MIDI I/O No USB I/O 1x USB-B (Host Connection) 2x USB-A (Control, External Memory) Expansion Ports 1x I/O Card Mobile App Compatible Yes: Android & iOS App Name: TF Editor, TF StageMix, MonitorMix Functionality: Adjust Settings, Remote Control, Setup, View Live Feed Recording Max Multitrack Recording 34 Tracks File Format Support Playback: MP3, WAV Record: WAV Compatibility OS Compatibility Android/iOS Power Input Power 100 to 240 VAC, 50 / 60 Hz Rack Mountable No Dimensions 28.2 x 8.9 x 23.6" / 716 x 225 x 599 mm Weight 37.5 lb / 17 kg Packaging Info Package Weight 49.9 lb Box Dimensions (LxWxH) 32 x 29 x 12" What's in the Box: Yamaha TF3 Digital Mixing Console Power Cord Steinberg's Nuendo Live Limited 1-Year Manufacturer Warranty
