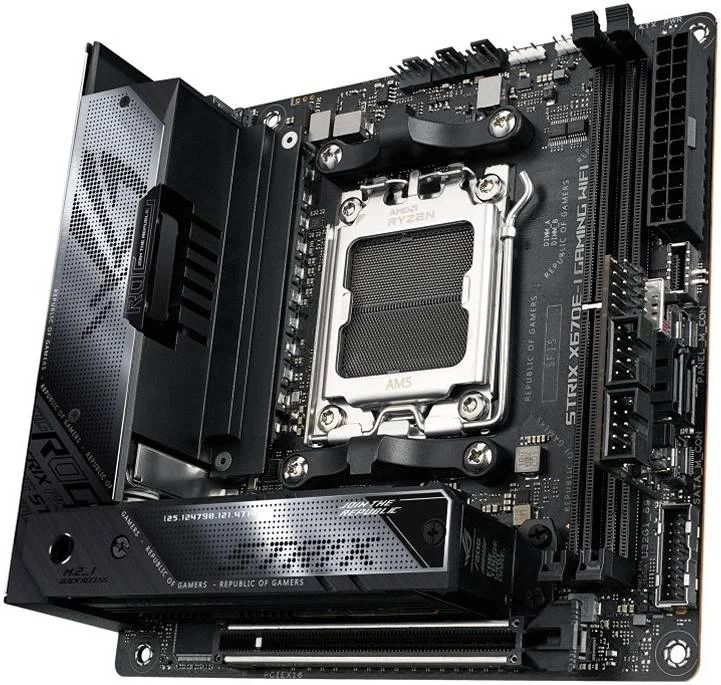

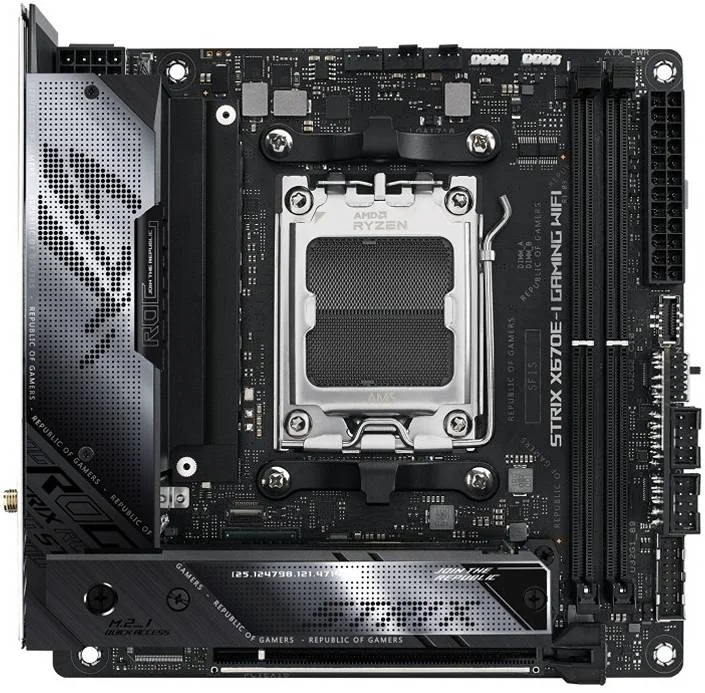

ASUS Rog Strix X670E-I Gaming Wifi Mini-ITX Motherboard, AMD AM5 Socket, AMD X670 Chipset, 2xDIMM, Max 64GB DDR5, WiFi 6E 6GHz, 2xM.2 Slots,1xPCIe 5x16, 1x HDMI/2xUSB4 | 90MB1B70-M0EAY0

ROG STRIX X670E-I GAMING WIFI Experience high-end gaming with the ASUS Republic of Gamers STRIX X670E-I Gaming WIFI Mini-ITX Motherboard. This sleek RGB-enabled motherboard is ideal for the gamer who wishes to utilize gaming components in a small, compact case. The X670 chipset lays the groundwork for your components, starting with the AM5 socket, made for AMD's Ryzen 7000 Series desktop processors. With two SATA III, two M.2 slots, and two dual-channel DDR5 memory slots, you can enjoy fast load times and increased multitasking capabilities. The single PCIe 5.0 x16 slot is available for graphics and utility, such as sound and network cards. This motherboard connects to wireless networks using Wi-Fi 6E (802.11ax) technology, while Bluetooth 5.2 allows you to connect to wireless accessories. Additionally, several USB-C and USB-A ports are available for wired peripherals. AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors. 2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz ECC. Robust Power Solution: 10 + 2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors. Optimized Thermal Design: Active VRM Heatsink with high conductivity thermal pads and an M.2 Gen 5 & Chipset Heatsink. Overclocking technologies: Dynamic OC Switcher, Ryzen Core Flex and PBO Enhancement. On-board Wi-Fi 6E and Intel 2.5 Gb Ethernet with ASUS LANGuard. Fastest Gaming Connectivity: HDMI 2.1, PCIe 5.0, two M.2 slots and two USB4 Type-C ports. ROG Strix Hive external audio solution with Realtek ALC4050 codec and ESS SABRE 9260Q DAC, along with DTS Sound Unbound and Sonic Studio III. DIY Friendly Design: Bundled ROG FPS-II Card and ROG Strix Hive, EZ mode PBO button, M.2 Q-Latch, pre-mounted I/O shield and BIOS FlashBack button. Specification CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. Chipset AMD X670 Memory 2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics 1 x HDMI® port* 2 x USB4® ports support USB Type-C® display outputs** *Supports 4K@60Hz as specified in HDMI 2.1. ** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot(s) Storage Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports**** *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1. **** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USB Rear USB (Total 10 ports) 2 x USB4® port(s) with Intel® JHL8540 USB4® controller (2 x USB Type-C®) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 3 ports) 1 xUSB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports ROG STRIX HIVE (Total 2 ports) 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®) 1 x USB 2.0 port(s) (1 x Type-A) ROG FPS-II C (Total 3 ports) 2 x USB 2.0 header(s) additional 3 USB 2.0 ports** Audio ROG High Definition Audio CODEC ALC4050 - Supports: Jack-detection - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - ROG Hyper-Grounding Technology - ESS® SABRE9260Q DAC - Silver-plated audio jacks - Optical S/PDIF out port & USB Type-C® port with indepent power solution - Dedicated audio PCB layers *All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE Back Panel I/O Ports 2 x USB4® port(s) with Intel® JHL8540 USB4® controller (2 x USB Type-C®) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE) 3 x USB 2.0 port(s) (3 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports Miscellaneous 1 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x RTC Battery header 1 x Thermal Sensor header 1 x 2 pin Power_BTN header 2 x USB Type-C® connectors to Install ROG FPS-II card* ROG FPS-II card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Clear CMOS header 1 x Front Panel header 1 x Alteration mode switch 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports Special Features Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - Aluminum backplate - M.2 Chipset Fan - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) ROG STRIX HIVE 1 x USB Type-C® connects to Motherboard 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®) 1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack™) 1 x Headphone jack with Mic in 1 x Mic in jack with Optical S/PDIF out 1 x EZ mode PBO button 1 x FlexKey button 1 x BIOS FlashBack™ button 1 x Volume Control Knob with Mute Button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel Cable ROG FPS-II Card 1 x ROG FPS-II Card ROG STRIX HIVE 1 x ROG STRIX HIVE 1 x USB Type-C® power connection cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor Mini-ITX Form Factor 6.7 inch x 6.7 inch( 17cm x 17cm)
