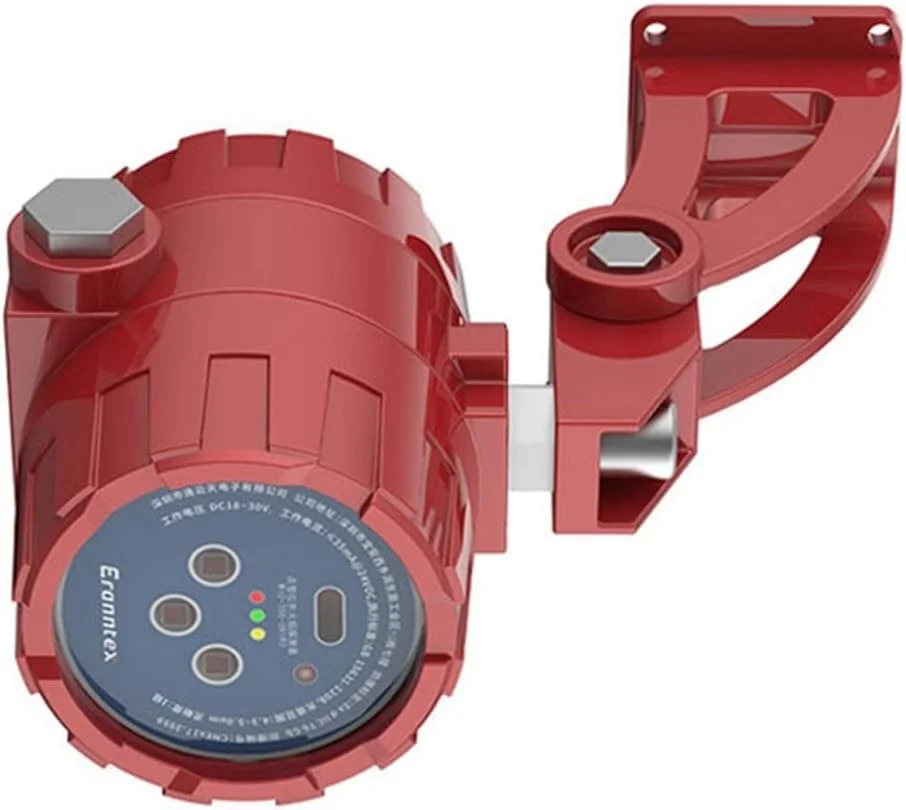

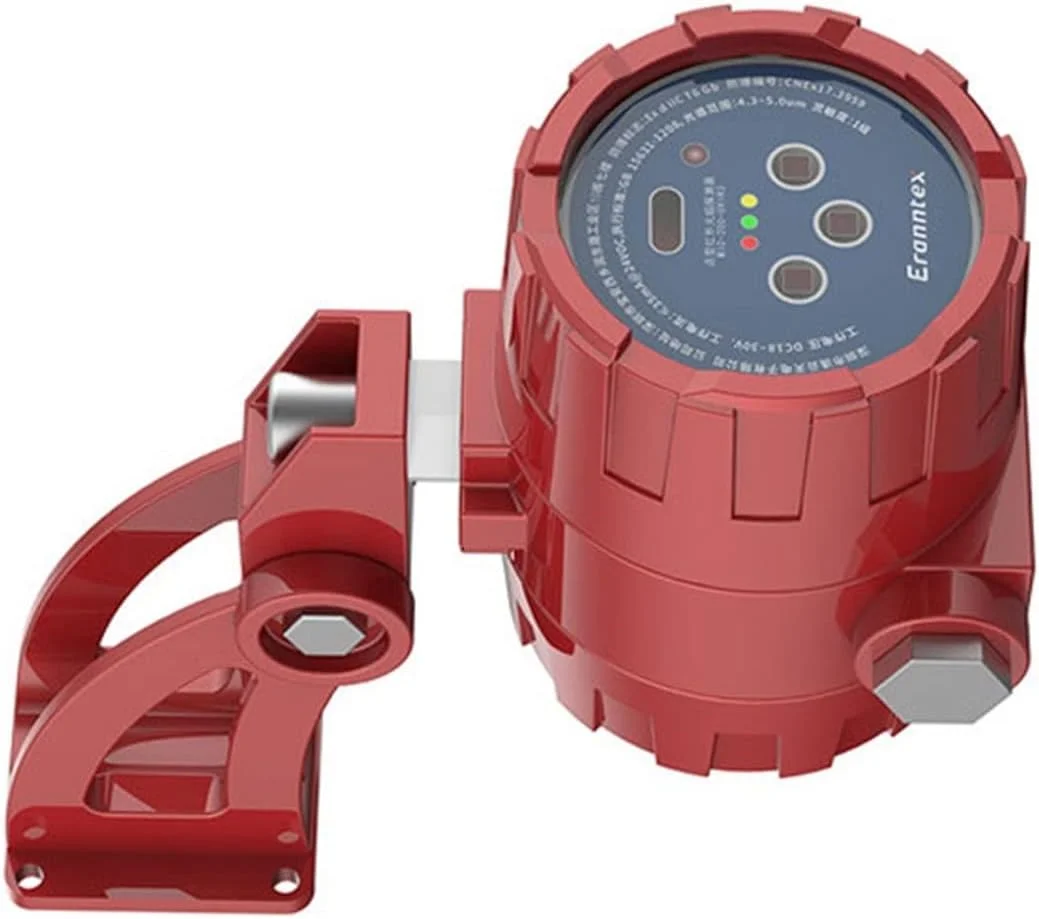

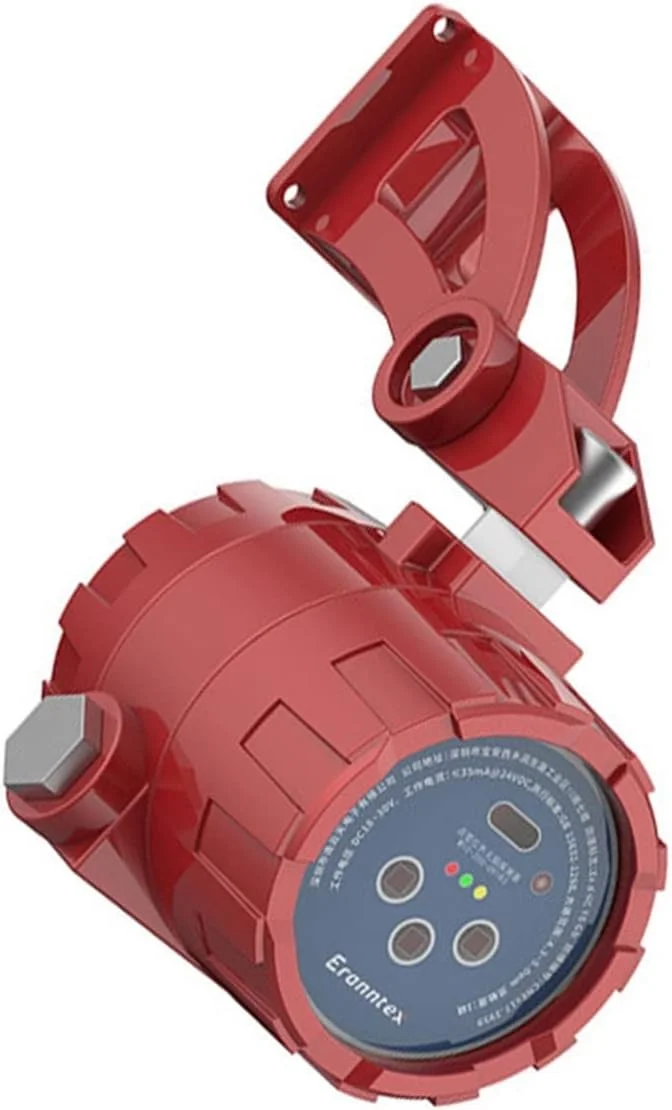

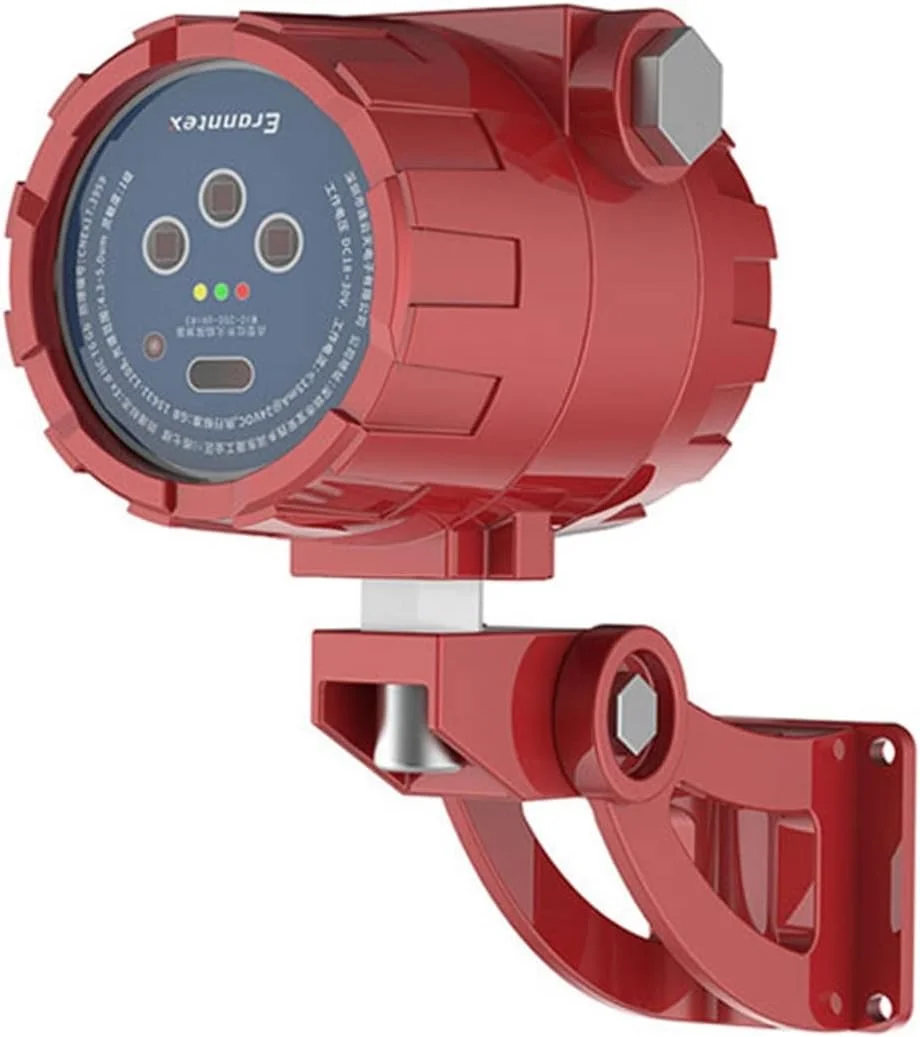

JAHLGT Gas Detectors Long-Distance Three-Channel purple light Flame Detector Open Flame Alarm Flame Detector Gas Leak Detector(Four Channel Infrared)

Working : DC24V; range: DC18 ~ ; <;;30mA, alarm ; 45mA; Spectral range: IR 4-5um, UV 260nm; Viewing angle range: UV viewing angle 120°, viewing angle 90; Response time: 5-10s The response time of different media is different; Sensitivity level: 15 levels of sensitivity (set by remote control); Signal output: 4-20mA, RS485, relay three output modes are optional; working temperature: -40℃~ 70℃; <;;95%RH (no condensation); Environmental test: used in environments such as high temperature, high salt, high temperature and low temperature. Protection class: IP66; Body material: aluminum alloy, surface anti-corrosion paint spray; Electrical interface: M20X1.5mm; Weight 1.7kg.
