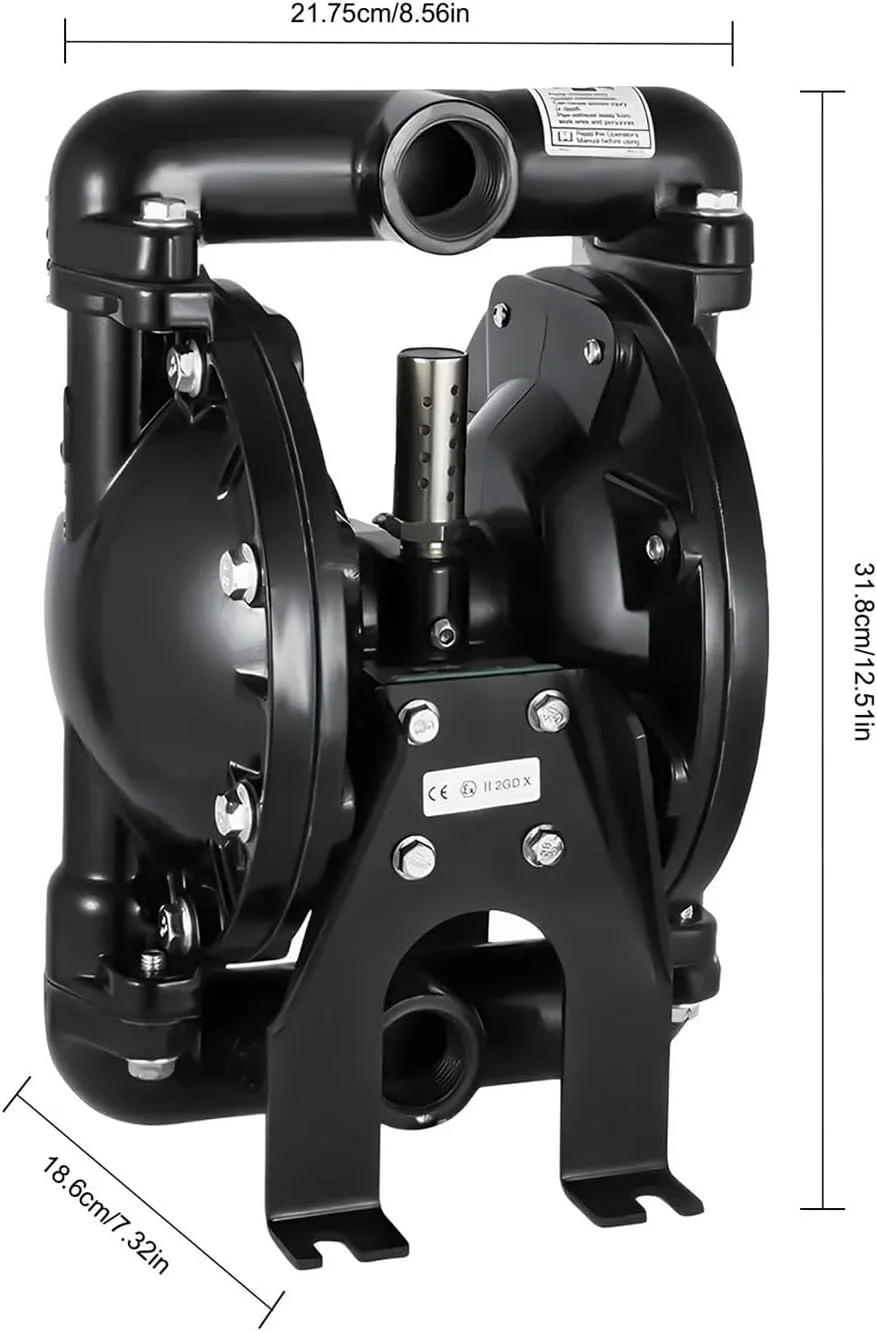

Diaphragm Pump, 35GPM Industrial Air-Operated Double Diaphragm Pump, NPT 1" Inlet Outlet Petroleum Fluids 120PSI

Product Description lA diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or diaphragm and suitable valves on either side of the diaphragm (check valve, valves, flap valves, or any other form of shut-off valves) to pump a fluid. lThe listing is about 35 GPM Air-Operated Double Diaphragm Pump with 1 Inch Inlet And Outlet. This powerful air-operated double diaphragm pump QBY4-25L features a 1in. inlet and 1in. outlet capable of pumping up to 35 gallons/min at temperatures up to 150 degrees F. Application l for use with water. for use with low viscosity petroleum fluids including , kerosene, motor oil and some waste oil. Warning! lCan not use for corrosive liquid. Working Principle lIn the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one. Compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions. Once the end of the stroke is reached, the gas distribution mechanism automatically introduces compressed air into the other working chamber to push the diaphragm in the opposite direction so that the two diaphragms move back and forth in unison. Feature l for use with low viscosity petroleum fluids lSolid construction lTwo years warranty lSpecifications lProduct: Diaphragm pump lType: Double diaphragm lOperation Type: Air-operated lModel: QBY4-25L lBody Material: Aluminum lInlet Port: 1 inch (25 mm) lOutlet Port: 1 inch (25 mm) lAir Inlet Size: NPT 1/2 inch (12.7 mm) lAverage Air Consumption: 38 CFM lMax Flow Rate: 9 m3/h (35 GPM) lSuction: 0-5 m (0-16.4 ft) lMax Suspended Solids: 3 mm (1/8 inch) lMax Head: 84 m (275.59 ft) lMax PSI: 120 psi lMax Temp.: 150 lSelf-Priming Dry: 3 m (10 ft) lSelf-Priming Wet: 4.6 m (15 ft) lManifold Connection: Single lValve Type: Ball lBall Material: Acetal lCheck Seat Material: Polypropylene lDiaphragm Material: Nitrile lPackage Size: 35 x 26 x 23 cm (13.78 x 10.24 x 9.06 inch) lGross Weight: 9.86 kg (21.74 lbs) Package Content l1 x Air-Operated Double Diaphragm Pump l1 x Product Manual
