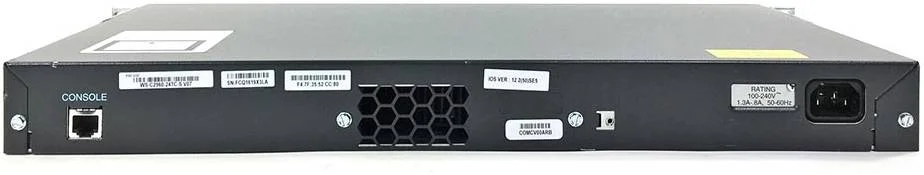

Cisco Catalyst WS-C2960-24PC-S LAN Lite Switch, 24x 10/100 PoE Ports, 370W PoE Power, 2x SFP 1G Uplink, 16 Gbps, Rack-mount 1U | WS-C2960+24PC-S

Catalyst WS-C2960-24PC-S Catalyst WS-C2960-24PC-S is one of the Cisco Catalyst 2960 Series switches. This series support voice, video, data, and highly secure access. They also deliver scalable management as your business needs change. The Common Features are included: Enhanced security including Cisco TrustSecfor providing authentication, access control, and security policy administration, Multiple Fast or Gigabit Ethernet performance options, Cisco EnergyWise for power management, and Scalable network management. Features 24 Ethernet 10/100 PoE ports for connecting devices. Power over Ethernet (PoE): The switch supports PoE, allowing it to provide power to connected devices such as IP phones or wireless access points over the Ethernet cables. Uplink Interfaces: It has 2 dual-purpose uplink ports that can be used as either Ethernet 10/100/1000 ports or as SFP ports for fiber optic connectivity. Switching Capacity: The switch has a switching capacity of 32 Gbps, indicating the maximum amount of data it can process per second. Forwarding Rate: It has a forwarding rate of 6.5 million packets per second (Mpps), which denotes the number of packets the switch can forward per second. VLAN Support: The switch supports VLAN functionality, allowing you to segment your network into multiple virtual networks. Security Features: It includes security features such as access control lists (ACLs), port security, DHCP snooping, and IP Source Guard to enhance network security. Quality of Service (QoS): The switch supports QoS features to prioritize specific types of network traffic, ensuring critical applications receive the necessary bandwidth and reducing latency. Management: It can be managed using Cisco IOS software through a command-line interface (CLI) or a web-based graphical user interface (GUI). ① Switch LEDs ② Mode button ③ 24*10/100 ports ④ Dual-purpose ports ·The switch LEDs include SYST, RPS, Status, Duplex, Speed and PoE LED. ·Dual-purpose ports support SFP or 1000BASE-T uplink port. ① RJ-45 console port ② Fan exhaust ③ RPS connector ④ AC power connector Specification Configurations 10/100 Ethernet Interfaces 24 Uplink Interfaces 2 (SFP or 1000BASE-T) Cisco IOS Software Feature Set LAN Lite Available PoE Power 370W (24 ports up to 15.4W) Hardware Flash memory 64 MB DRAM 128 MB Performance and Scalability Forwarding bandwidth 16 Gbps Maximum active VLANs 644 VLAN IDs available 4K Maximum transmission unit (MTU) - L3 packet 9000 bytes Jumbo frame - Ethernet frame 9018 bytes Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second 6.5 Mechanical Dimensions (H x W x D) 1.73 x 17.70 x 13.07 in (4.4 x 45.0 x 33.2 cm) Weight 12 lb (5.4 Kg) Package Weight 20.26 lb (9.19 Kg) Environmental Ranges Operating temperature up to 5000 ft (1500 m) 23º to 113ºF (-5º to 45ºC) Operating temperature up to 10,000 ft (3000 m) 23º to 104ºF (-5º to 40ºC) Short-term exception at sea level* 23º to 131ºF (-5º to 55ºC) Short-term exception up to 5000 feet (1500 m)* 23º to 122ºF (-5º to 50ºC) Short-term exception up to 10,000 feet (3000 m)* 23º to 113ºF (-5º to 45ºC) Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF (-5º to 40ºC) Storage temperature up to 15,000 feet (4573 m) 23º to 158ºF (-25º to 70ºC) Operating altitude Up to 10,000 Feet (Up to 3,000 Meters) Storage altitude Up to 13,000 Feet (Up to 4,000 Meters) Operating relative humidity 10% to 95% noncondensing Storage relative humidity 10% to 95% noncondensing Sound Pressure, dBA Typical, LpAm: 33 Maximum, LpAD: 36 Sound Power, dbA Typical, LwA: 43 Maximum, LwAD: 46 MTBF in thousands of hours 381 Connectors and Interfaces Ethernet Interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling Indicator LEDs Per-port status: Link integrity, disabled, activity, speed, and full duplex System status, Port Status, PoE, RPS, link duplex, and link speed Console Cisco Catalyst console cables: CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 Power The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet. The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch. Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle. Management and Standards Support Management BRIDGE-MIB CISCO-CABLE-DIAG-MIB CISCO-CDP-MIB CISCO-CLUSTER-MIB CISCO-CONFIG-COPY-MIB CISCO-CONFIG-MAN-MIB CISCO-DHCP-SNOOPING-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-ENVMON-MIB CISCO-ERR-DISABLE-MIB CISCO-FLASH-MIB CISCO-FTP-CLIENT-MIB CISCO-IGMP-FILTER-MIB CISCO-IMAGE-MIB CISCO-IP-STAT-MIB CISCO-LAG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-PAGP-MIB CISCO-PING-MIB CISCO-POE-EXTENSIONS-MIB CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-PRODUCTS-MIB CISCO-PROCESS-MIB CISCO-RTTMON-MIB CISCO-SMI-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB CISCO-TC-MIB CICSO-TCP-MIB CISCO-UDLDP-MIB CISCO-VLAN-IFTABLE RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB ENTITY-MIB ETHERLIKE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB IF-MIB INET-ADDRESS-MIB OLD-CISCO-CHASSIS-MIB OLD-CISCO-FLASH-MIB OLD-CISCO-INTERFACES-MIB OLD-CISCO-IP-MIB OLD-CISCO-SYS-MIB OLD-CISCO-TCP-MIB OLD-CISCO-TS-MIB RFC1213-MIB RMON-MIB RMON2-MIB SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-TARGET-MIB SNMPv2-MIB TCP-MIB UDP-MIB ePM MIB Standards IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP) IEEE 802.3ad IEEE 802.3af IEEE 802.3ah (100BASE-X single/multimode fiber only) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X RMON I and II standards SNMP v1, v2c, and v3 RFC compliance RFC 768 - UDP RFC 783 - TFTP RFC 791 - IP RFC 792 - ICMP RFC 793 - TCP RFC 826 - ARP RFC 854 - Telnet RFC 951 - Bootstrap Protocol (BOOTP) RFC 959 - FTP RFC 1112 - IP Multicast and IGMP RFC 1157 - SNMP v1 RFC 1166 - IP Addresses RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery RFC 1305 - NTP RFC 1492 - TACACS+ RFC 1493 - Bridge MIB RFC 1542 - BOOTP extensions RFC 1643 - Ethernet Interface MIB RFC 1757 - RMON RFC 1901 - SNMP v2C RFC 1902-1907 - SNMP v2 RFC 1981 - Path MTU Discovery for IPv6 FRC 2068 - HTTP RFC 2131 - DHCP RFC 2138 - RADIUS RFC 2233 - IF MIB v3 RFC 2373 - IPv6 Aggregatable Addrs RFC 2460 - IPv6 RFC 2461 - IPv6 Neighbor Discovery RFC 2462 - IPv6 Autoconfiguration RFC 2463 - ICMP IPv6 RFC 2474 - Differentiated Services (DiffServ) Precedence RFC 2597 - Assured Forwarding RFC 2598 - Expedited Forwarding RFC 2571 - SNMP Management RFC 3046 - DHCP Relay Agent Information Option RFC 3376 - IGMP v3 RFC 3580 - 802.1X RADIUS Voltage and Power Ratings Voltage (Autoranging) 100 to 240 VAC Current (Amperes) 4.0 – 2.0 Frequency 50 to 60Hz Power Rating (kVA) 0.43 DC Input Voltages (RPS Input) 2A at 12V (7A at -52V) Power Consumption 0% traffic: 35.0 10% traffic: 34.8 100% traffic: 35.2 ATIS weighted average: 34.9 Safety and Compliance Regulatory Compliance Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC Safety UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 EMC - Emissions 47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A EMC - Immunity EN55024 CISPR24 EN300386 KN24 Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
